Ever since the early days of vCAC, customers have needed the ability to provide a variety of additional control options to vRealize Automation’s self-service consumer. I’m specifically referring to inputs and selection options that are made available to the consumer during request time. Some of the most common examples include fields for plain text input, drop-down menus, checkboxes, value lists, and text descriptors. The input or selection can be basic information or used for downstream processing during machine provisioning.

Custom Properties

There are hundreds (thousands?) of use cases and unique requirements that make it just about impossible for VMware to deliver every option as an out of the box. function. Instead, vRealize Automation (vRA) leverages Custom Properties to provide a quick-n-easy way to control many aspects of machine provisioning. Custom properties can be used across much of vRA’s configuration constructs, including Blueprints, Business Groups, Compute Resources, Reservations, and Endpoints (in that order of precedence). Custom properties are a core component of vRA’s massive extensibility engine and are often used in collaboration with the Property Dictionary, Property Groups, vRealize Orchestrator (via workflow stubs), and the new Event Broker. If you’re unfamiliar with custom properties and these concepts, be sure to read the documentation.

Custom properties can also be used to override default behavior by specifying and modifying Internal custom properties. This essentially overrides a default configuration parameter with the desired custom input. There are many ways this can be beneficial — for example, the internal custom property VirtualMachine.Network0.Name is used by vRA to assign the appropriate network path to a machine’s primary vnic during provisioning. By default, this is configured via Reservations and an associated Network Profile. Network profiles are then available to be dragged onto the Converged Blueprint designer canvas and bound to one or more component machines. That’s the default behavior, but default behavior isn’t always the desired behavior.

Use Case: A vRA administrator wants to allow developers the ability to select a preferred network at provisioning time, which will depend on the dev cycle of a given application. While the admin can create several blueprints — each bound to a unique network — and make them all available to the developers, this creates unnecessary overhead and will result in excessive blueprint sprawl.

To solve this, we can use the internal custom property VirtualMachine.Network0.Name to allow the developer override the network path at request time. But that alone won’t do us much good since what we really need a drop-down list of available/supported networks (or else expect the developer to memorize and manually enter the exact network path each time). This is where the Property Dictionary comes in.

The Property Dictionary can be used to define unique custom properties and/or further customize how a consumer interfaces with a custom property field at request time. For example, a drop-down list of network paths.

Solution: Create a Property Definition to dynamically set the custom property VirtualMachine.Network0.Name based on a consumer’s selection from a list of predefined available networks.

Let’s do this…

Network Selection Drop-Down

The first step is to determine which networks you want to make available in the drop-down list. This can include any of the network paths collected during endpoint inventory, including NSX-backed logical networks. These networks need to be configured for use in the Reservation.

Configure Network Paths

1. From the Infrastructure tab, navigate to Reservations -> Network

2. Select (check) all the network paths that will be available in the drop-down list

3. Select the appropriate Network Profile to be used with each network (note: a network profile is required to assign the correct IP information at provisioning time).


4. Click OK to accept the changes

Create a Property Definition

5. Navigate over to Property Definitions from the Administration tab

6. Click +New to add a new property definition


7. Enter the following configuration details:
a. Name:  VirtualMachine.Network0.Name
b. Label:  Select a Network
c. Description:  <some useful description>


d. Order index:  1
e. Data type:  String
f. Required:  Yes
g. Display advice:  Dropdown
h. Values:  Predefined values

8. In Predefined values, click +New to enter a friendly network Name and the corresponding Value (network path) for each network that will be available in the drop-down list.

Note: the Value must be IDENTICAL to the network path…copy/paste this info from Reservations.


9. Click OK to create the Property Definition


Create a Property Group

Property Groups are used to combine one or custom properties into a single logical grouping. This is extremely helpful when adding multiple custom properties to an object — the property group can be added once vs. having to add each individual custom property.

NOTE: there’s an alternate purpose for using a Property Group in this case (considering we’re only using one custom property)…vRA7 reserves any network-related custom properties for use at the network adapter level of a component machine. Attempting to add our property definition on its own will return an error stating that fact…


As a work-around, we create the property group, add the desired custom property, and then apply the property group to the Blueprint.

10. Navigate to Property Groups in the Administration tab

11. Click + New to create a new Property Group and configure as follows:
a. Name:  Network Selection
b. ID:  keep the default entry
c. Visibility: This tenant
d. Description:  enter a useful description

12. In the Properties section, click on + New

13. In the Name column, use the drop-down menu to select VirtualMachine.Network0.Name

14. Keep the Value field empty and check Show in Request

15. Click OK to accept the property configuration


16.  Click OK again to create the Property Group


Add Property Group to Blueprint

Custom properties (including property groups and property definitions) can be applied at various locations in vRA, depending on the use case. In the final step of this exercise, we’ll apply the Property Group directly to the machine component of the target Blueprint.

17. Open the target Blueprint to edit it

18. Highlight the desired machine component to modify it’s settings

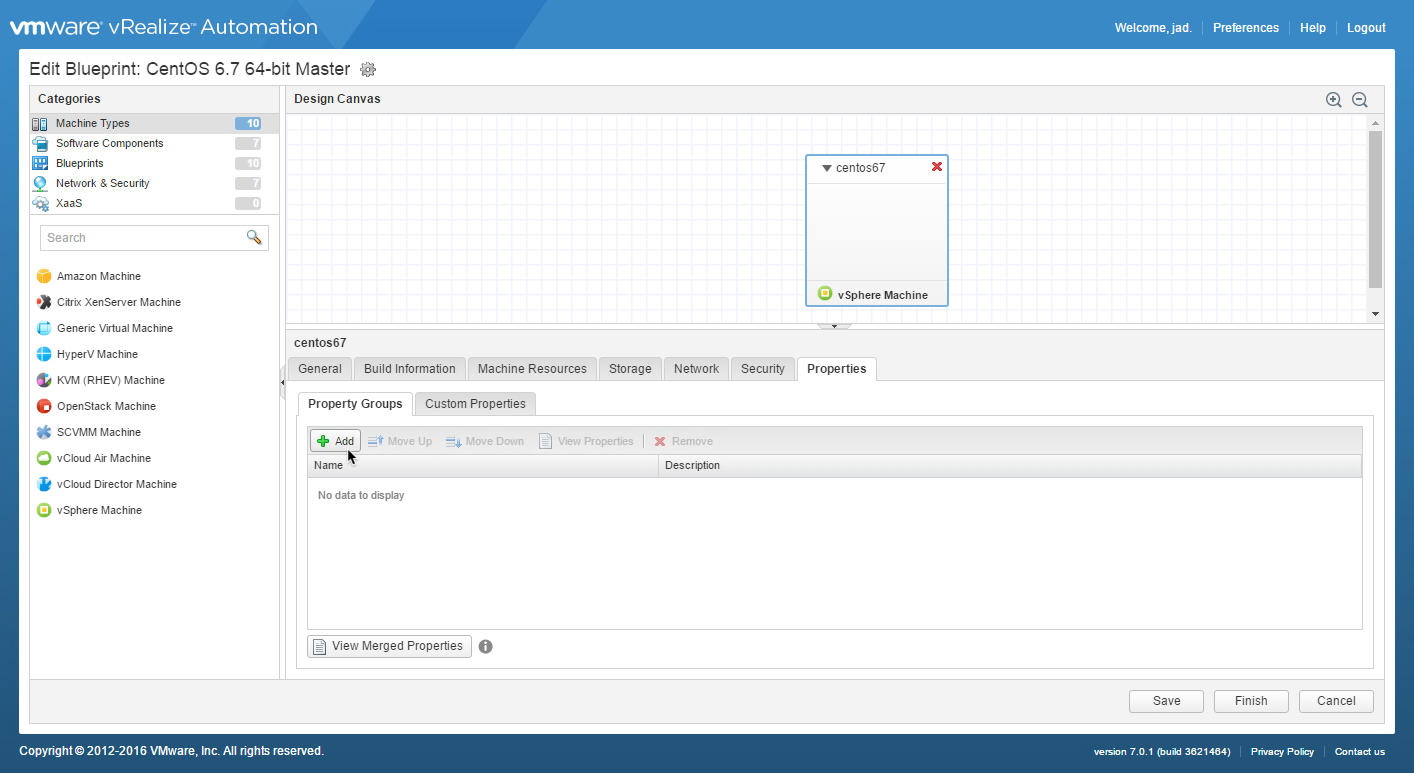

19. Click + Add in the Properties tab -> Property Groups


20. Select the desired property group (Network Selection) from pop-up window and click OK


21. Once applied, click Finish to close the designer


Check Your Work

At this point you should be able to request the modified blueprint and see the network drop-down in the request screen. Since the property was applied at the machine component in the blueprint designer, the custom list will be available at the machine level (vs. the parent object).

Specify a desired network from the drop-down list and submit your request.


Once it has been provisioned, verify the machine was deployed to the appropriate network by inspecting the Network tab of the machine (under Items) or in the vSphere client.


This is just one example of putting custom properties to good use. But as you can imagine, the possibilities are quite vast. Whether you are customizing machine behavior or invoking external workflows, custom properties will — or should — play a significant role in your vRA implementation.






  1. I get the same error. I have checked multiple times, there are no spelling mistakes and my reservation is ok. I can add the 2 networks individually to the blueprint and there are no errors.

  2. Do you know if there is a way to “group” several Network Profiles, like you do here, but not to let the user select it, but to let VRA select one automatically?

    I want to achieve the following. I have lets say 5 “service” networks and 2 “management” networks. The problem is that the moment I add 2 NICs to a VM I have to connect one to a specific “service” network and the other one to a specific “management” network. I’d like to group them, so I can select the desired use case and let VRA deploy on the corresponding VLAN. So instead of selecting a profile I would select the “service” group for one NIC and the “management” group for the other.

    Right now I have to manually edit the blueprints if a network runs out of IPs and change it’s Network Profile.

  3. Matthew: Did you figure out a way to get around the issue you had?
    “So what if I want a drop down with production VLANs and another with Lab VLANS? When using the same property again i get the “already used” message. How do you get around this?”

  4. Jad El-Zein – I got this to work, however I have a Network Profile called “Production Static IPs” and “Dev Static IPs”. The two spaces correlate to two different networks. Can I specify the drop down for “Development Network” to pull from network profile “Dev Static IPs” and vice verse? Thanks as always your blog is a great resource!

    • @jonkensy – using property dictionary, you create a definition to add a drop-down to select the appropriate network profile (instead of the network path per this post). Use custom property “VirtualMachine.NetworkN.ProfileName” to provide that selection option. Each profile should provide an IP range that aligns with the appropriate network.

      Keep in mind this property only binds the machine nic(s) with the network profile for IP addressing…it does NOT automatically place the machine on the corresponding network path.

      • Excellent info Jad – so, then, how would one allow the requestor to not only specify the network/IP space but also put it on the correct path?

  5. Were you able to figure out any solution to Matthew’s comment/question? We are faced with the same.

  6. Any idea on how to enable and disable the custom property during catalog request ? Suppose I would like to enable some custom property to be shown in the catalog request based on some other inputs in the catalog request ? Please help.

  7. Ok got it to work but what about if I want to create another one with another set of networks?

    So what if I want a drop down with production VLANs and another with Lab VLANS? When using the same property again i get the “already used” message. How do you get around this?

  8. Ok got it to work but what about if I want to create another one with another set of networks? So what if I want a drop down with production VLANs and another with Lab VLANS? When using the same property again i get the “already used” message.

  9. So I just tried this out and I got this error on provision:

    The following component requests failed: Win2012R2-Base. Allocation request [Composition RequestId: [030ab5ef-e07c-45ba-971b-bdcf622fec7b], CompTypeId: [Infrastructure.CatalogItem.Machine.Virtual.vSphere], BlueprintId: [Windows2012R2BaseImage], CompId: [Win2012R2-Base], BlueprintRequestId: [197a8f0f-580a-4d1c-940a-2307407b4ec3], RootCafeRequestId: [766874ae-329e-4af7-a56a-62affbaf765e], SubtenantId: [e86c38d5-6ba6-42aa-bae1-799e529d7e8c]] with binding id [99048e39-84d1-460b-a72b-6b4db4a23bed] failed with [Infrastructure service provider error: A server error was encountered. Error requesting machine. No reservation available that has all specified networks: Production – VLAN6.]

    It’s weird, I checked my reservation in compute resources and it indeed has that network profile.

    • @Matthew – the leading cause of this error (in the context of property dictionary) is a typo or misconfigured reservation. Check the following:

      1) The target reservation has the network path checked
      2) Network path has a network profile property configured
      3) The drop-down list value is IDENTICAL to the network path (use copy/paste of the entire path, keep any special characters as-is). Be sure the ” – ” in your network path is a single hyphen and not a double.
      4) No Reservation Policies are in the way
